Laidong engine 18.4kw, Retractable shoes, Boom swing, Tailless rotation
Enhanced working device and frame, optimized structure, reduced stress concentration,and extended average life by 30%.safe and reliable.

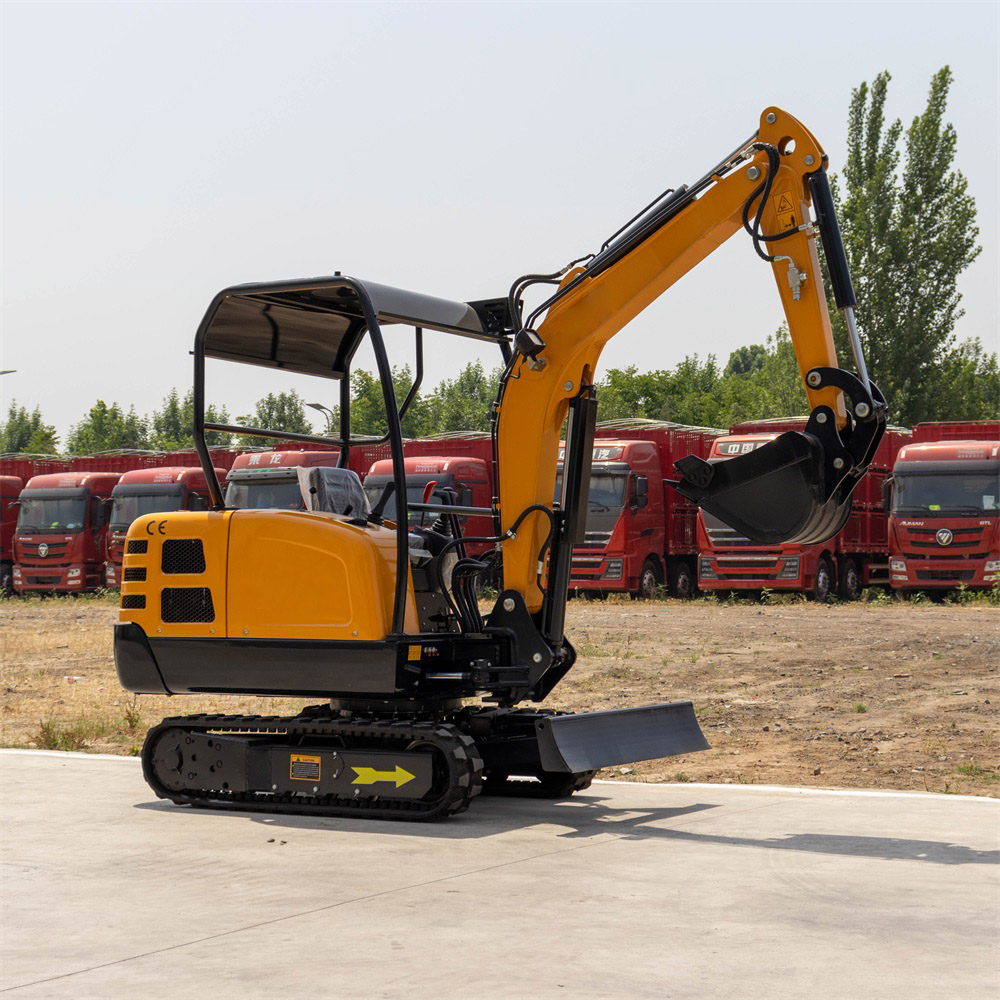

2.2 ton mini hydraulic excavator is with compact design, and with low oil consumption, it is suitable to be used for works, small projects, in garden, farmland, municipal works, vegetable greenhouse and digging trench. It is with small engine, simple design and easy to maintain.
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.
2.2 ton mini excavator can also be used with attachments such as break hammers,augers, grippers, rakes, rippers, narrow buckets,grabbers, plain bucket ,trailers etc., to meet different construction occasions
|
Machine Size |
|
|
Overall dimension (L*W*H) |
4170mm*1300mm*2280mm |
|
Axle base(Track length on ground) |
1230mm |
|
Track gauge |
1070mm |
|
Min.Ground clearance |
230mm |
|
Swing radius at tail |
1180mm |
|
Track System |
|
|
Maximum Travel speed |
3.5km/h |
|
Width of track shoe |
230mm |
|
Number of track shoe per side |
38pcs |
|
Number of upper roller per side |
0 |
|
Number of bottom roller per side |
4 |
|
Performance Parameter |
|
|
Standard bucket capacity |
0.1m³ |
|
Swing speed |
12rpm |
|
Max. Grade ability |
30° |
|
Max. Bucket digging force |
15.3KN |
|
Max. Arm digging force |
10.5KN |
|
Hydraulic system pressure |
18Mpa |
|
Machine weight |
2200kg |
|
Arm length |
1000mm |
|
Engine |
|
|
Engine Model |
Laidong 3TE30 |
|
Emission Standard |
Euro 5 |
|
Power/Rotation speed |
18.4kw(25HP)2000rmp |
|
Number of cylinder |
3 |
|
Working Range |
|
|
Max. Digging height |
3700mm |
|
Max. Dumping height |
2290mm |
|
Max. Digging depth |
2450mm |
|
Max. Vertical digging depth |
2160mm |
|
Max. Digging radius |
4370mm |
|
Min .swing radius |
2020mm |
|
Max. Lifting height of blade |
240mm |
|
Max. Cutting depth of blade |
310mm |
|
Boom swing angle(Left) |
75° |
|
Boom swing angle(Right) |
45° |
