Model |

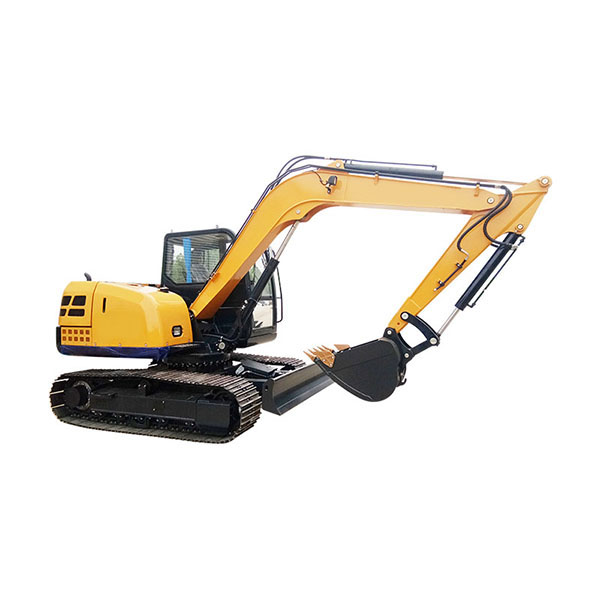

MS90 |
|
Machine Size |
|
|
Standard Bucket capacity |
0.4m3 |
Overall dimension(L*W*H) |
6410mm*2278mm*2630mm |
|
|
Swing speed |
12rpm |
Height of cabin |
2630mm |
|
|
Maximum Grade ability |
35° |
Track length on ground(Axle base) |
2209mm |
|
|
Maximum Bucket digging force |
58KN |
Track gauge |
1750mm |
|
|
Maximum Arm digging force |
40KN |
Minimum Ground clearance |
375mm |
|
|
Hydraulic system pressure |
27.5Mpa |
Swing radius at tail |
1813mm |
|
|
Machine weight |
9000kg |
Working Range |
||
|
Fuel tank |
110L |
Maximum Digging height |
7050mm |
|
|
Hydraulic oil tank |
100L |
Maximum Dumping height |
5188mm |
|
|
Engine |
Maximum Digging depth |
4015mm |
||
|
Emission Standard |
Tier 3/ Stage lll |
Maximum Vertical digging depth |
3550mm |
|
|
Make/Model |
CUMMINS/QSF2.8 |
Maximum Digging radius |
6540mm |
|
|
Power /Rotation speed |
53kw(72HP)@2200rpm |
Minimum swing radius |
2140mm |
|
|
Number of cylinder |
4 |
Maximum Lifting height of blade |
370mm |
|
|
Track System |
Maximum Cutting depth of blade |
344mm |
||
|
Maximum Travel speed |
2.3/4km/h |
|
|
|
|
Width of track shoe |
450mm |
|
|
|
|
Number of track shoe per side |
39pcs |
|
|
|
|
Number of upper roller per side |
1 |
|
|
|
|
Number of bottom roller per side |
5 |
|
|
|
