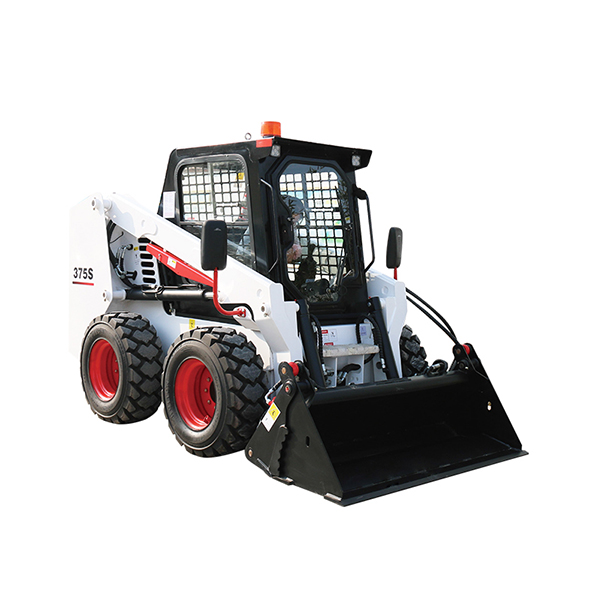

Model:MS-380S |
|||
|
Loading capacity |
1200kg |

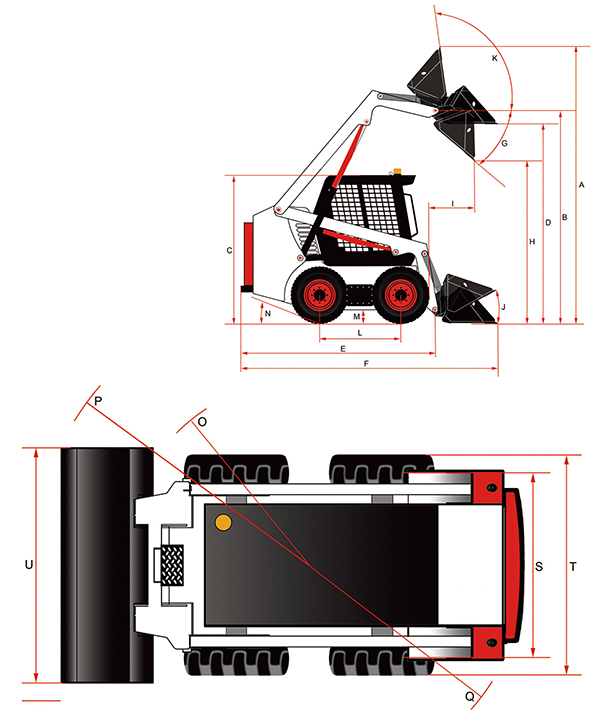

Front turning radius with bucket(mm) |
2210 |
|
Engine power |
69kw |
Rear turning radius (mm) |
1786 |
|
Bucket capacity |
0.5m3 |
Tread width, centerline to centerline (mm) |
1506 |
|
Flow output |
80 L/min |
Width between outside of two wheels (mm) |
1850 |
|
Operating weight |
3600kg |
Bucket width (mm) |
1880 |
|
Overall operating height (mm) |
4000 |
Engine Power |
55kw |
|
Height to bucket hinge pin (mm) |
3100 |
Chain type |
100H |
|
Height to top of cab (mm) |
2028 |
Speed-standard |
11.6 km/h |
|
Height to bottom of level bucket(mm) |
2960 |
Speed-high |
optional |
|
Overall length without bucket (mm) |
2733 |
Tubeless tires |
12-16.5 |
|
Overall length with bucket (mm) |
3523 |
Solid tires optional |
33X12-20 |
|
Dumping angle at maximum height(° ) |
40 |
Rated loading capacity |
1000kg |
|
Dumping height (mm) |
2465 |
Tipping loading |
2400kg |
|
Dumping reach (mm) |
610 |
Lifting type |
Radial |
|
Rollback of bucket on ground (° ) |
30 |
Breakout force, curl |
2760kg |
|
Rollback of bucket at full height(° ) |
98 |
Breakout force lift |
2760kg |
|
Wheelbase (mm) |
1150 |
Total cycle time |
10.2s |
|
Ground clearance (mm) |
215 |
Bucket capacity |
0.55m3 |
|
Angle of departure(° ) |
26 |
System pressure |
210 bar |
|
Turning radius front without bucket (mm) |
1350 |
Hyraulic pump output flow |
80 L/min |
|
A/C |
optional |
High flow pump output |
128L/min |
|
FUEL TANK |
90L |
Kerb wight with bucket |
3350 kg |
|
High flow output |
128L /min |
|
|
