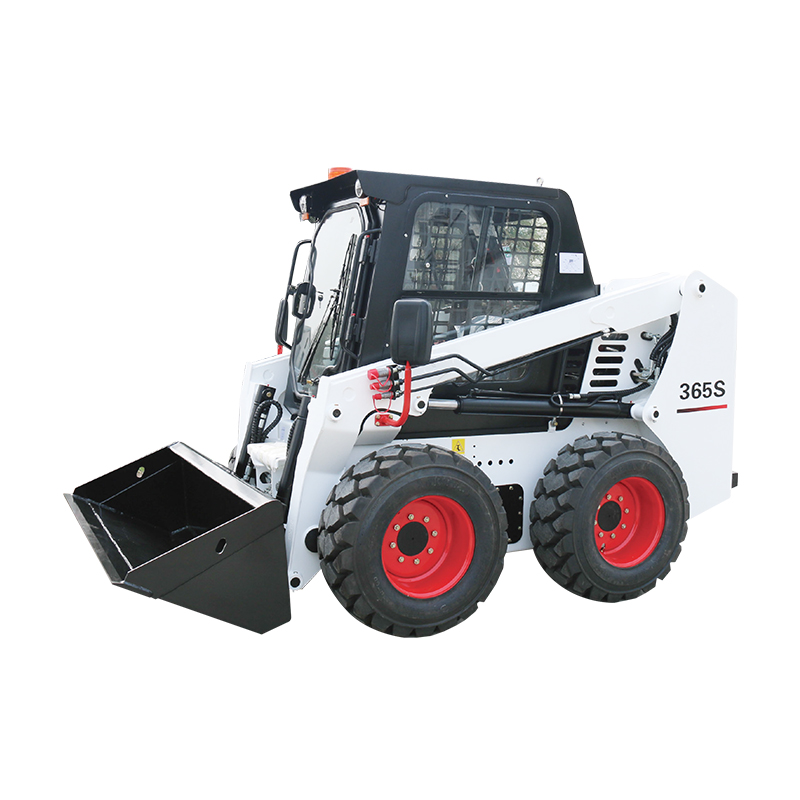

Model:MS-350S |
|||
|
Loading capacity |
700kg |

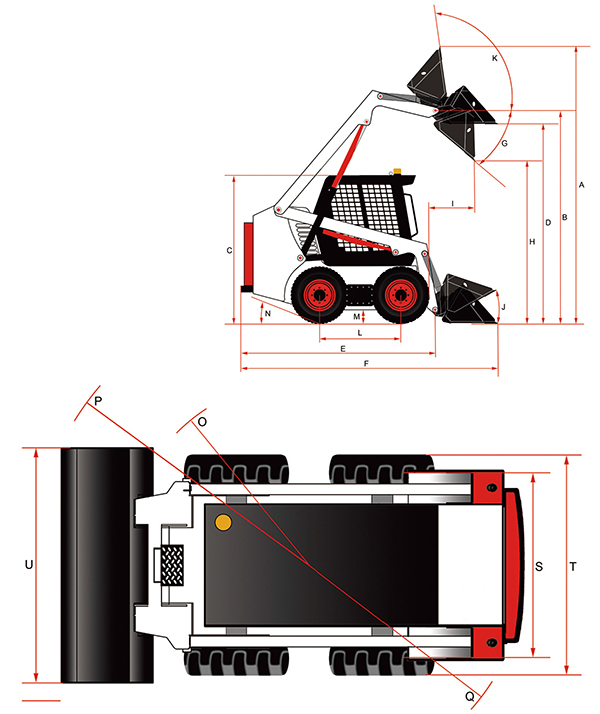

Front turning radius with bucket(mm) |
2032 |
|
Engine power |
40kw |
Rear turning radius (mm) |
1650 |
|
Bucket capacity |
0.45m3 |
Tread width, centerline to centerline (mm) |
1375 |
|
Flow output |
80 L/min |
Width between outside of two wheels (mm) |
1625 |
|
Operating weight |
3100kg |
Bucket width (mm) |
1740 |
|
Overall operating height (mm) |
3850 |
Engine Power |
40kw |
|
Height to bucket hinge pin (mm) |
3000 |
Chain type |
100H |
|
Height to top of cab (mm) |
1980 |
Speed-standard |
12.2 km/h |
|
Height to bottom of level bucket(mm) |
2800 |
Speed-high |
optional |
|
Overall length without bucket (mm) |
2708 |
Tubeless tires |
10-16.5 |
|
Overall length with bucket (mm) |
3406 |
Solid tires optional |
31X10-16 |
|
Dumping angle at maximum height(° ) |
40 |
Rated loading capacity |
700kg |
|
Dumping height (mm) |
2336 |
Tipping loading |
1400kg |
|
Dumping reach (mm) |
505 |
Lifting type |
Radial |
|
Rollback of bucket on ground (° ) |
30 |
Breakout force, curl |
1810kg |
|
Rollback of bucket at full height(° ) |
96 |
Breakout force lift |
2200kg |
|
Wheelbase (mm) |
1085 |
Total cycle time |
9.1s |
|
Ground clearance (mm) |
186 |
Bucket capacity |
0.45m3 |
|
Angle of departure(° ) |
26 |
System pressure |
210 bar |
|
Turning radius front without bucket (mm) |
1270 |
Hyraulic pump output flow |
80 L/min |
|
A/C |
/ |
High flow pump output |
for optional |
|
FUEL TANK |
90L |
Kerb wight with bucket |
2780 kg |
