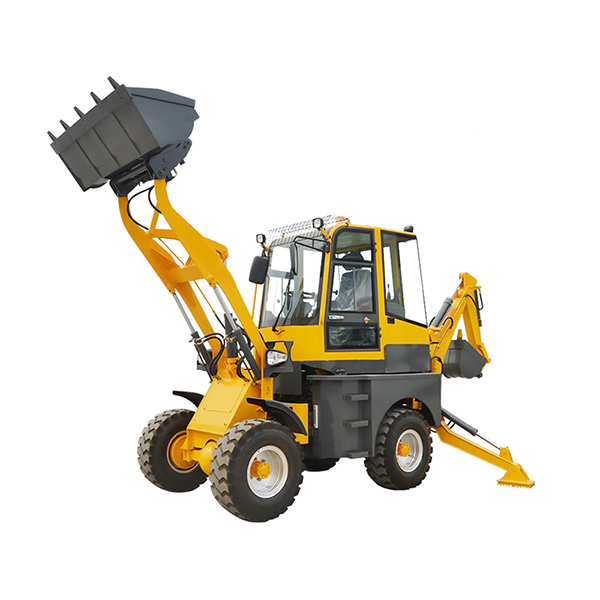

MS15-10 Backhoe Loader

Project Information

Project Description


MS15-10 with front and rear adjustable instrument panel, rotating seat, push and pull window, front turning cab, front shovel mechanical pilot operation, rear hydraulic pilot operation, alarm light, warm air, high and low speed fan, double leg with lock, isuzu disc brake bridge.


Model : MS15-10

Max.Excavating Depth

2000mm

Falling Time of Movable Arm

3s

Max.Excavating Height

3600mm

Summational Time

10s

Max.Excavating Radius

5000mm

Max. Breakout Force

20kn

Bucket Capacity

0.1m3

Engine Brand Model

Yunnei

Max. Hauling Force

23KN

Number of Cylinder

4 Cylinder

Max. Swing Angle of Boom

180°

Electric System Voltage

24V

Max.Dumping Height

2300mm

Rated Power

42kw (57HP)

Min. Turning Radius

3500mm

Tyre Model

20.5/70-16

Max.Dumping Distance

900mm

Rated Revolution

2400r/min

Ground Clearance

230mm

Maximum Forward Speed

30km/ hour

Loading Mass

1000kg

Working Pressure

20MPa

Drive

4 Wheel Drive

Total Weight

3990kg

Grade ability

25°

Distance Between Axles

1725mm

Lifting Time of Movable Arm

4.5s

Overall Dimension(L xWxH)

5900x 1860x 2960mm
