MS70 7T Wheel Excavator

Project Information

Project Description

MS70 7T Wheel Excavator Introduction

The 7 ton excavator have crawler type and wheel type, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in vari-ous construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.


MS70 7T Wheel Excavator Parameter


TECHNOLOGY SPECIFICATION

Machine

Specfication

Operating Weight

6600 kg

Bucket Capacity

0.28 m3

Transport length

5940 mm

Transport width

2024 mm

Transport height

2827 mm

Tail swing Radius

1833 mm

Track Width

2400 mm

Min. ground clearance

217 mm

Performance

Parameter

Engine power

48/2300 kw/rpm

Max. engine torque

245/1610 N.m/rpm

Hydraulic pump

Shimadzu-SGPIA23F2H9

Pilot pressure

3 Mpa

Working pressure

20 Mpa

Rated flow

105.8 Umin

Hydraulic tank capacity

103 L

fuel capacity

125 L

Rotating speed

10rpm

Max. travelling speed

30 km/h

Digging force of bucket

46 kIN

Max. drawbar pull

39 kN

Gradeability

59% (30*)

Bulldozer blade (WxL)

2024/440 mm

Working Range

Movable arm length

3260 mm

Arm length

1750 mm

Max. excavation distance

6230 mm

Max. Digging depth

3500 mm

Max. Digging height

6300 mm

Max.dumping height

4750 mm

Min. turming radius

2361mm

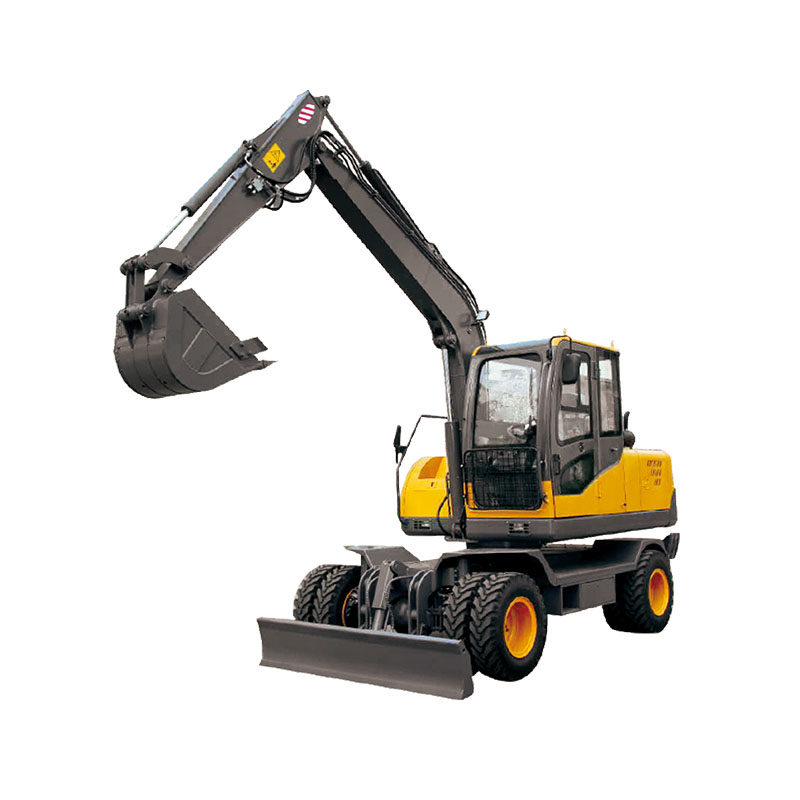

MS70 7T Wheel Excavator Images
