MS-1600 Mini Dumper

Project Information

Project Description

MS-1600 Mini Dumper Parameter

Model:MS-1600



Engine model

Changchai L12M1-R00D3

Gearbox model

Guli GL-18

Uninstall form

Hydraulic dump

Clutch form

Hydraulic boost

Start method

Electric start

Steering Type

Tie rod type

Steering device

Clutch brake pad steering

Gear

Three in and one back

Optional function

250kg electric crane

Vehicle weight

966 kg

Maximum load

1500 kg

Total width of track

845 mm

Dimensions

2870*1250* 1400mm

Cargo box size

1650*550*1120mm

Height of cargo box from the ground

500mm

Minimum turning radius

1 500mm

Track specification

230* 72*58mm

Roller specifications v

Steel 6*150mm

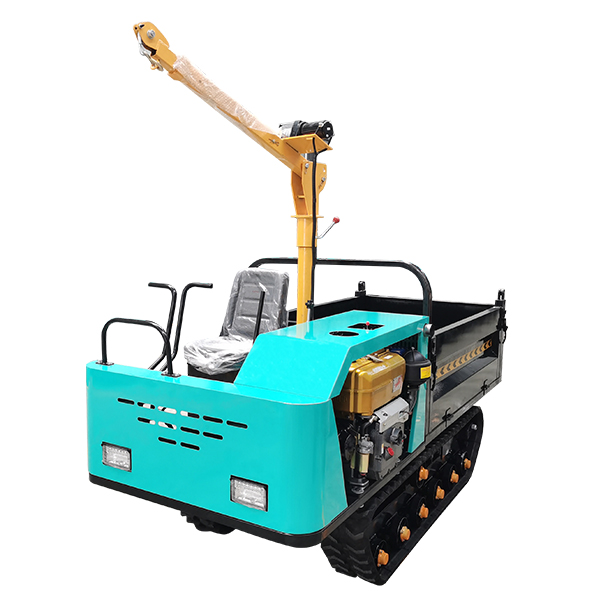

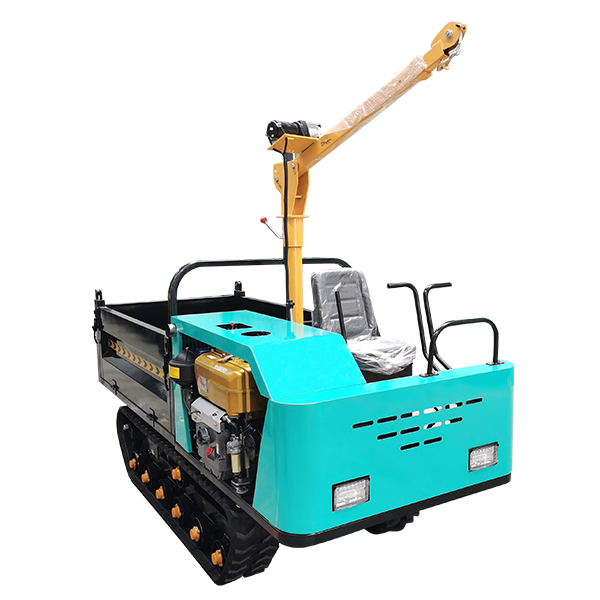

MS-1600 Mini Dumper Images
