MS10 1ton mini excavator with Cabin

Project Information

Project Description

MS10 1ton mini excavator with Cabin  Introduction

EPA/CE,ISO certificate Optional: Boom swing Color can choose Red, Yellow, Blue, accept customized。

This one is Customer customized Colour and with retractable tracks

This Mini Excavator is designed for small works, small projects, in Garden, farmland ,Municipal works, vagetable greenhouse, digging trench. It is with small engine, simple design, easy to maintain.

MS10 1ton mini excavator with Cabin Parameter


Model
MS-10
Weight
1000kg
Digging bucket capacilty
0.025cbm/120kg
Bucket width
380mm
Engine
CHANGCHAI (192FAM)
Optional Engine
BRIGGS & STRATTONYANMAR, Koop, Yanmar
Bore stroke
Single cylinder, fan cool
Rated power
8.2 kw/3600r/min
Main pump
G5-6
Displacement
6.8ml/r
Swing motor
SANYANG (BMRS -250)
Traveling motor
SANYANG (BMT-245)
Travel speed
1.5kmv/h
Main Demensions
Overall dimension( LxWWxH)
2775 x 930 x 2219 mm
Wheelbase
910 mm
Total length of track
1230mm
Platiorm ground dearance
380 mm
Platform back tuming radius
784mm
Chassis widh
896mm
Track width
180 mm
Chassis ground clearance
132mm
Track height
320 mm
Operating Range
Max. Digging depth
1650 mm
Max. Vertical digging depth
1375 mm
Max. Digging height
2610 mm
Max. Dumping height
1850 mm
Max. Digging radius on ground
2850 mm
Min. Rotation radius
1330 mm
Max. Upgrade height of blldozer blade
345 mm
Max. Digging depth of bulldozer blade
255 mm

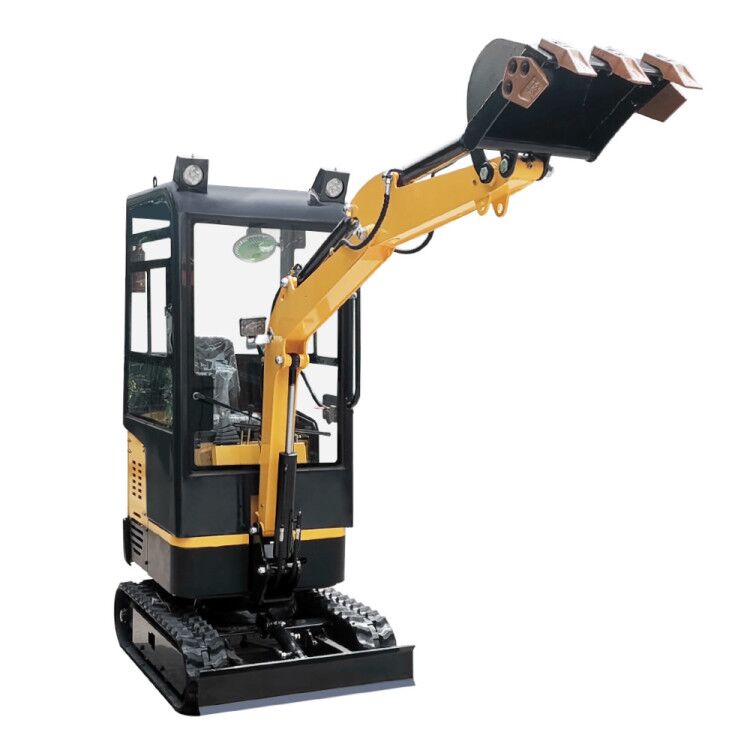

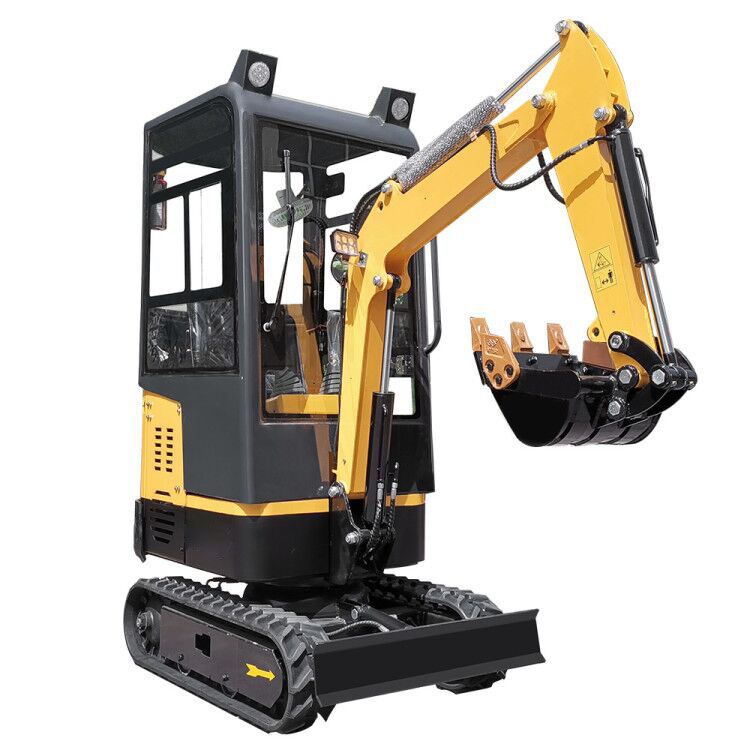

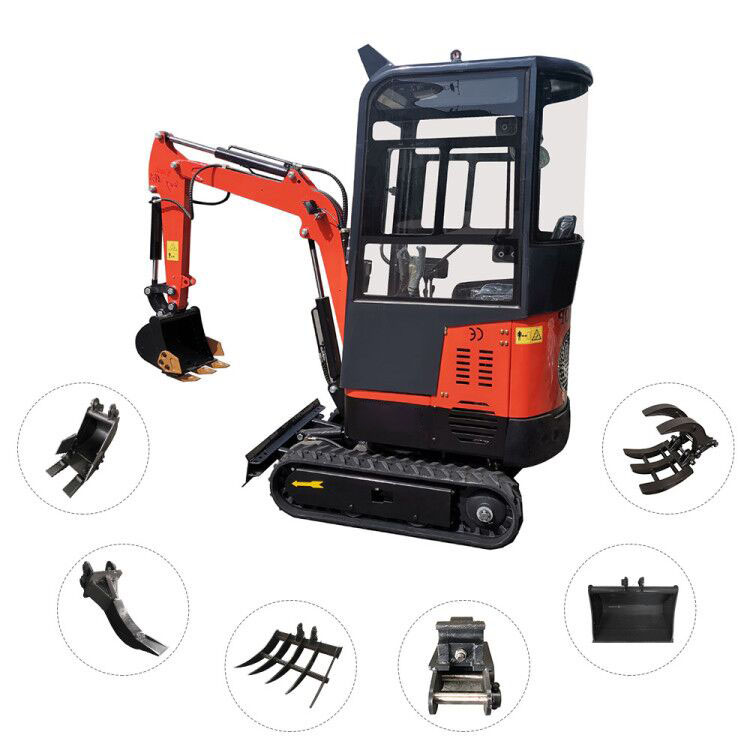

MS10 1ton mini excavator with Cabin Images
