1,CE EPA EURO5 ISO APPROVED
2, BOOM SWING FUNCTION

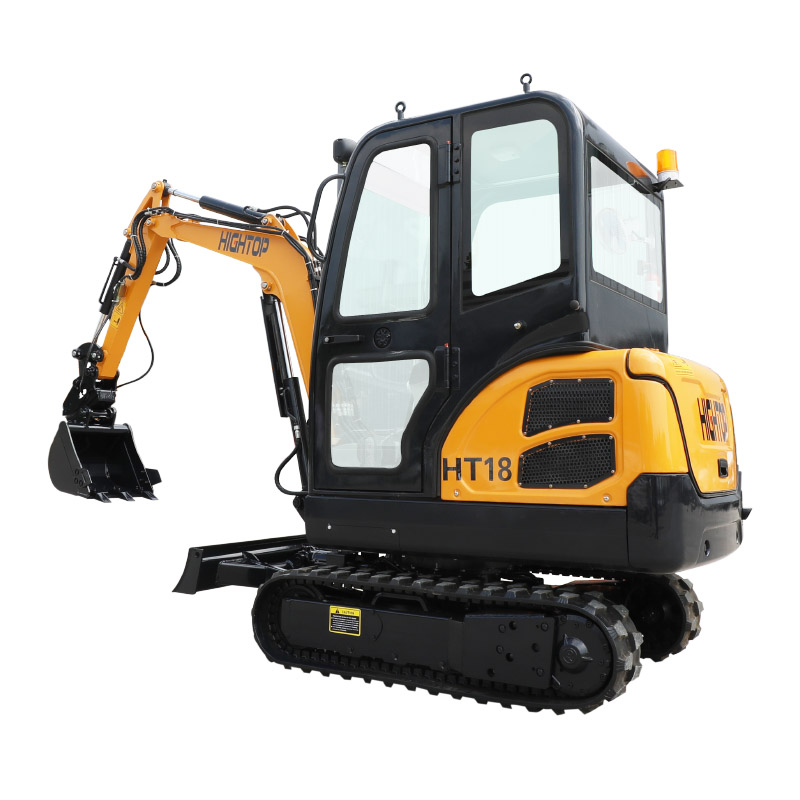

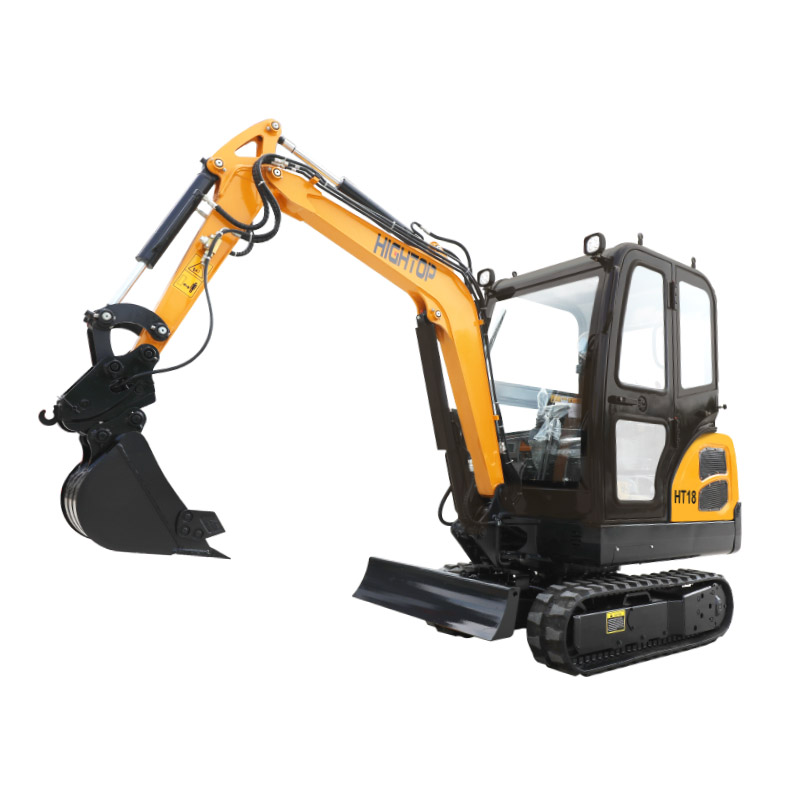

3,The crawler excavator is a compact excavator ,which matched china Laidong engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with broken pipeline system , adopted the hydraulic pilot servo operation system , the machine can changed track from rubber to steel and cabin from open to closed. ensure it can work in different working environments and conditions.
4，OPTION:
Can add cabin, with heater
can choose the steel track
can connect different attachments as like:Auger, Break Hammer, Buckets 260mm, 800mm, 1000mm, tilting bucket 800mm or 1000mm;Grapple Engine can be chosed with EURO5 KUBOTA Brand 14.2kw
5,The crawler excavator is a compact excavator ,which matched china Laidong engine , hydraulic pilot servo operation system,
6.Boom Swing Functio the boom of excavator can swing to left or right , suitable for different director digging for your working.
7.fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor,
8.The machine can changed track from rubber to steel cabin from open to closed. ensure it can work in different working environments and conditions.
9.Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
|
Machine Size |
|
|
Overall dimension (L*W*H) |
3865mm*1050mm*2270mm |
|
Axle base(Track length on ground) |
1230mm |
|
Track gauge |
820mm |
|
Min.Ground clearance |
210mm |
|
Swing radius at tail |
1125mm |
|
Track System |
|
|
Maximum Travel speed |
3.5km/h |
|
Width of track shoe(Rubber & steel track) |
230mm |
|
Number of track shoe per side(Steel track only) |
38 pcs |
|
Number of upper roller/ bottom roller（per side） |
0/4 |
|
Performance Parameter |
|
|
Standard bucket capacity |
0.06m³ |
|
Swing speed |
10~12 rpm |
|
Max. Grade ability |
35° |
|
Max. Bucket digging force |
14KN |
|
Max. Arm digging force |
10KN |
|
Hydraulic system pressure |
18Mpa |
|
Machine weight |
1800kg |
|
Engine |
|
|
Emission Standard |
Euro 5/EPA |
|
Engine Brand / Power |
Kubota D1105 14.2kw; Laidong 3TE25 18.4Kw |
|
Number of cylinder |
3 |
|
Working Range |
|
|
Max. Digging height |
3365mm |
|
Max. Dumping height |
2385mm |
|
Max. Digging depth |
2050mm |
|
Max. Vertical digging depth |
1725mm |
|
Max. Digging radius |
3860mm |
|
Min .swing radius |
1720mm |
|
Max. Lifting height of blade |
230mm |
|
Max. Cutting depth of blade |
275mm |
|
Boom swing angle(Left) |
75° |
|
Boom swing angle(Right) |
45° |
|
|
|
