MSS25 Skid Steer Loader

Project Information

Project Description

MSS25 Skid Steer Loader Instruction

Perkins engine 403D-11 18.4kw engine, Italian Lufthansa hydraulic pump, American Danfoss motor, imported gear pump, domestic oil cylinder, Italian multi-way valve, open cab, hydraulic control, 560*155 solid tires, 40″ shovel Bucket, liquid brake, Italian fast quick-change joint (through Lynx plane)

MSS25 Skid Steer Loader Parameter

Specifications

Rated operating capacity(kg) 300

Tipping load(kg) 600

Bucket capacity(m3)    0.2

Operationg weight(kg) 1500

Max. travel speed(km/h) 9

Hydraulic pump flow(L/min) 50

Fuel tank capacity(L) 25

Tires 560*155

Overall dimensions(mm) 2430×1000×2050

Dimensions

Height at maximum extension(mm) 3126

Height to bucket hinge pin(mm) 2399

Width with bucket(mm) 1200

Track width(mm) 747

Wheelbase(mm) 722

Ground clearance(mm) 148

Dump angle 36°

Dumping height(mm) 1882

Maximum reach(mm) 458

Engine

Maker/Model      Perkins403D-11

Net power 18.4KW/2800rpm

Type 3Cylinder in-line, Water cooled, 4 stroke,

Diesel engine

Displacement(L) 1.642

Standard

Open-type operator cab

Hydraulic joystick controls

Standard bucket

Auxiliary hydraulic couplers

Attachments:

Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,

Combinition bucket,Mower,Asphalt cutter,and More

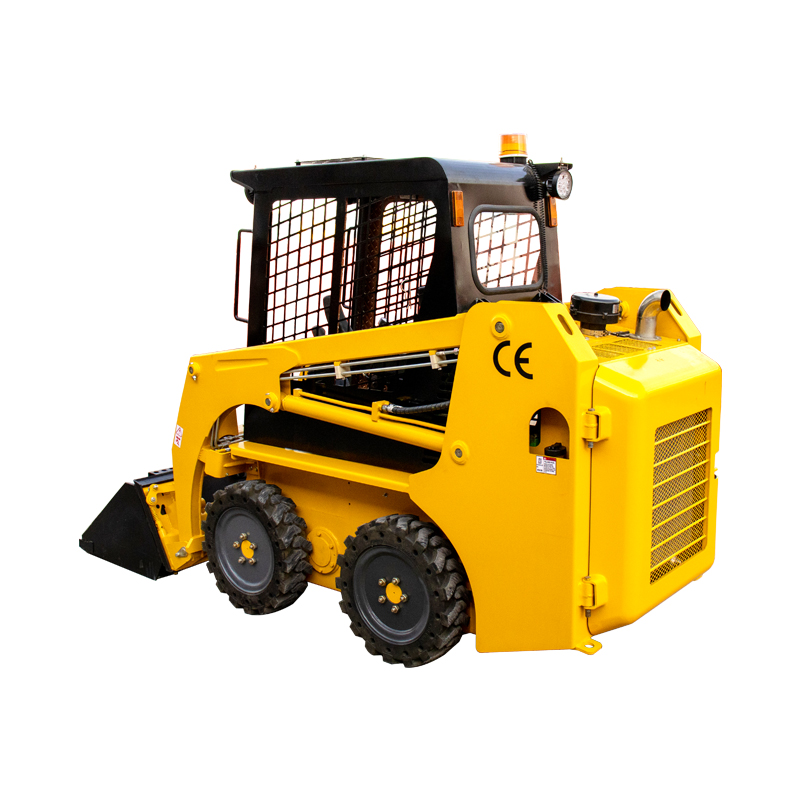

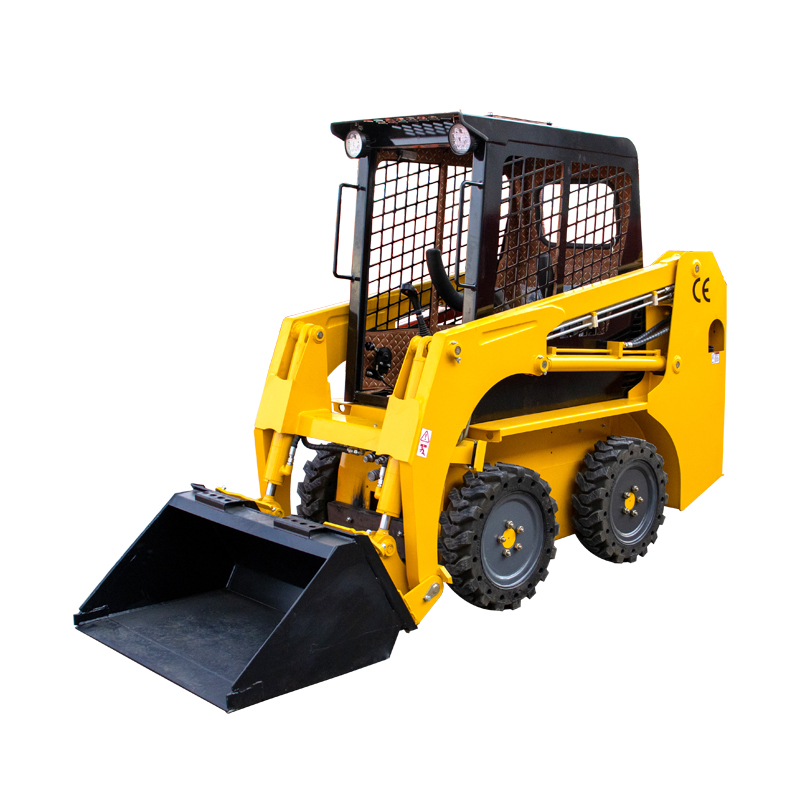

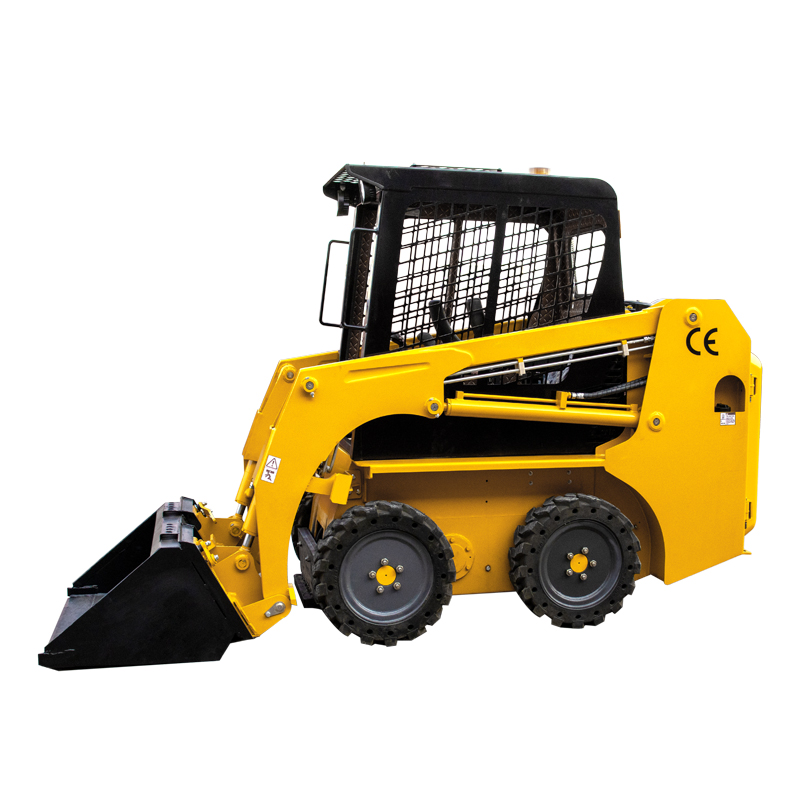

MSS25 Skid Steer Loader Images
