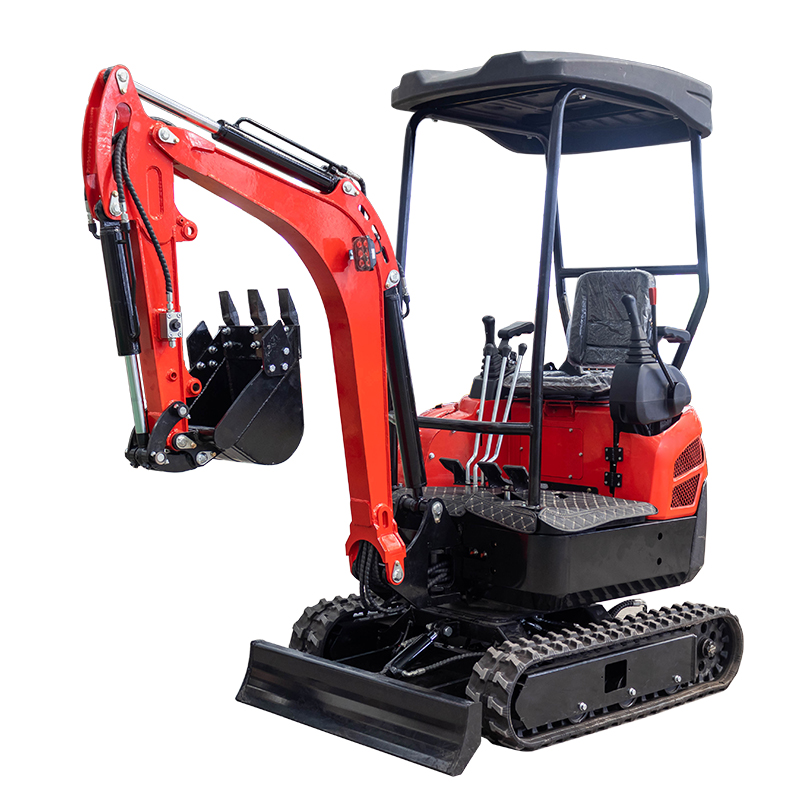

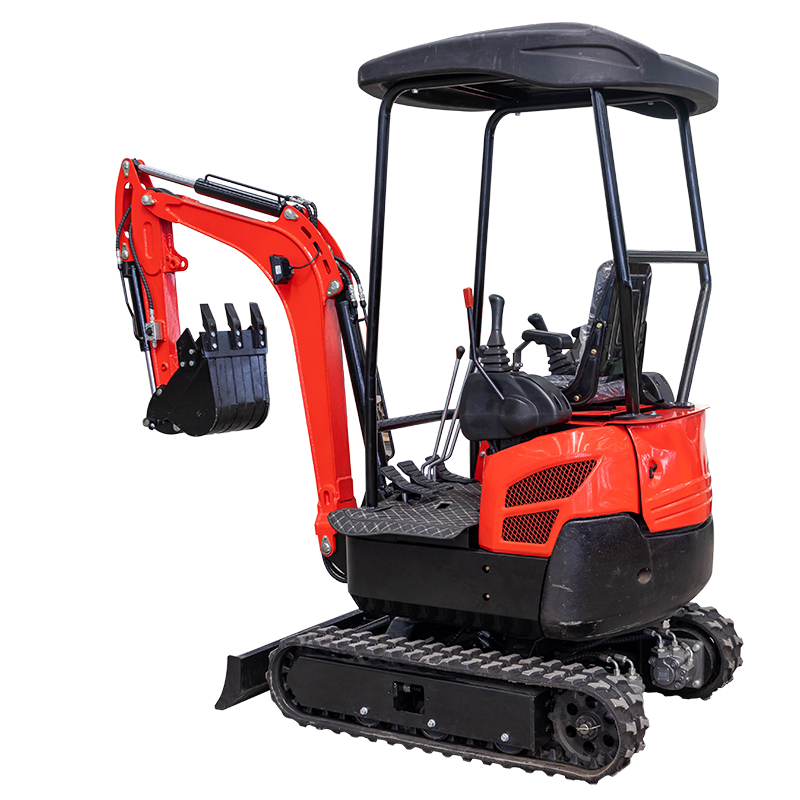

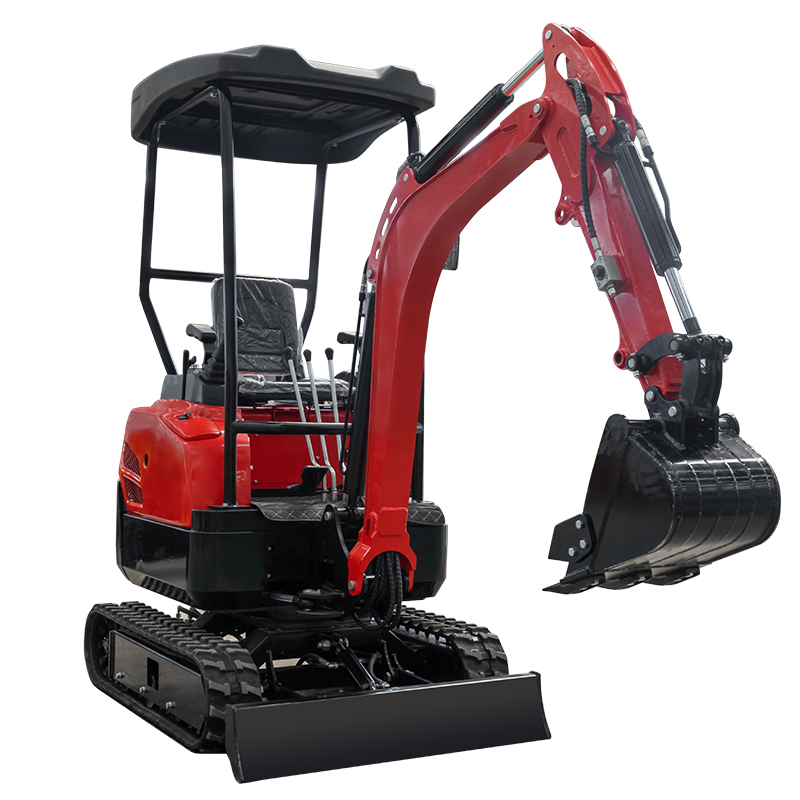

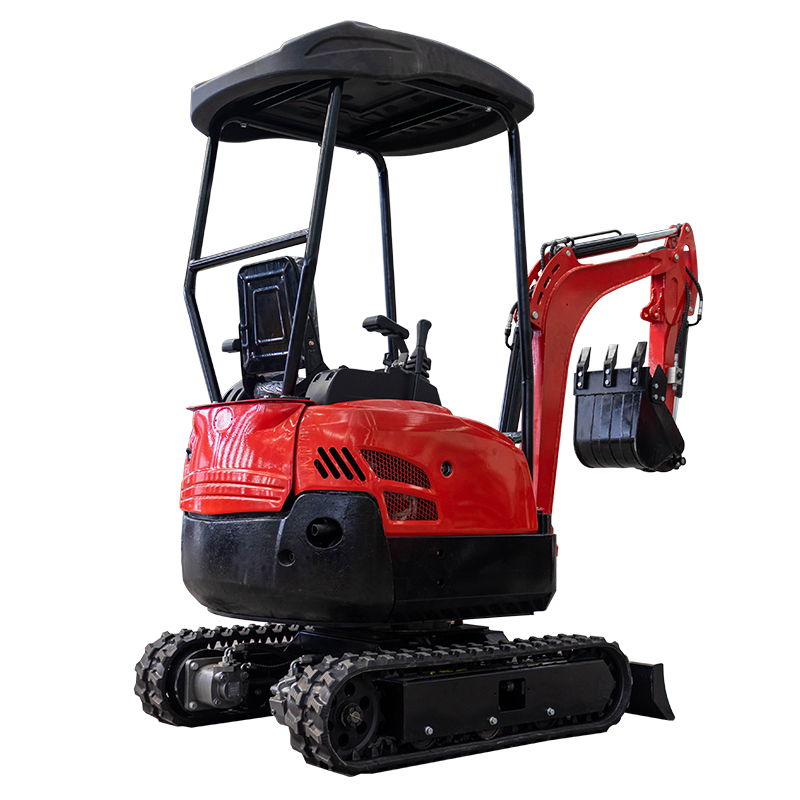

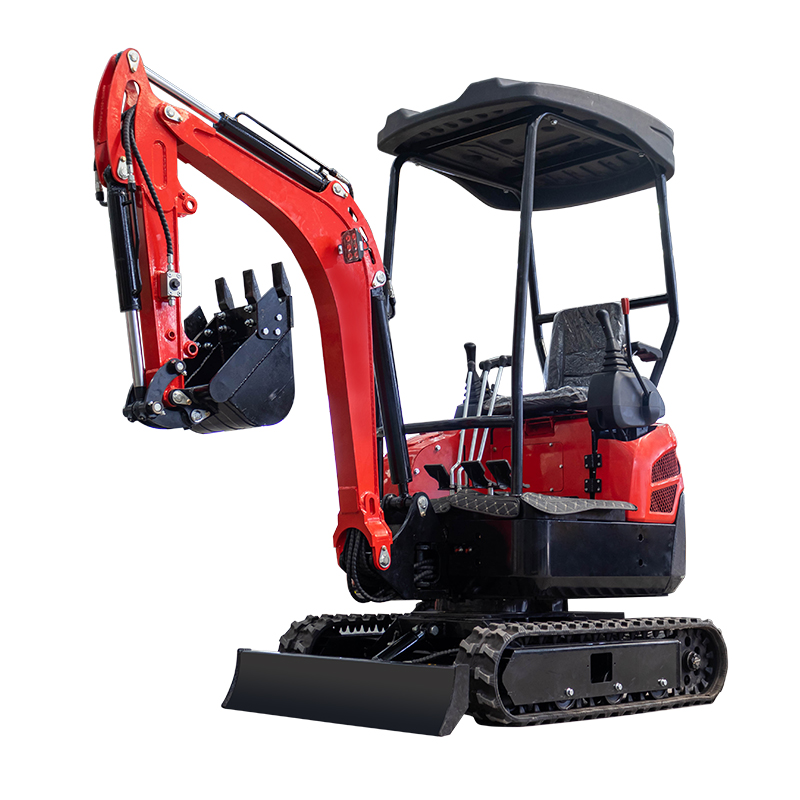

MS18 Mini Excavator

Project Information

Project Description

MS18 Mini Excavator Advantages

1,Hydraulic pilots

2,Kubota engine--low fuel consumption and guaranteed quality

3,Boom swing

4,tailless

5,Rubber track---gear transmission, strong grip

6,Handstand arm

7,throttle valve

8,Dashboad

9,Add oil drain pipe for travel motor and swing motor

MS18 Mini Excavator Parameter

MS18 Mini Excavator Parameter

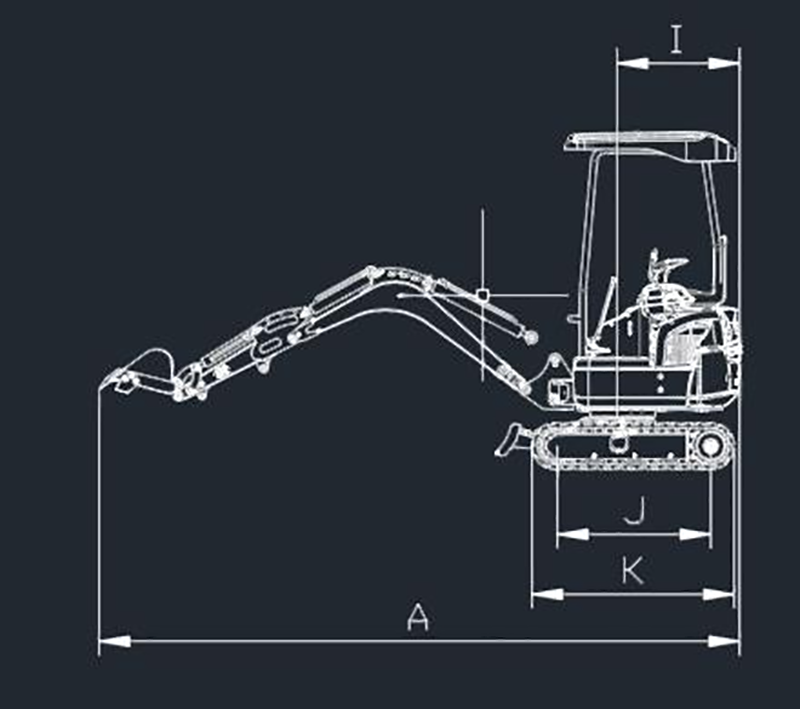

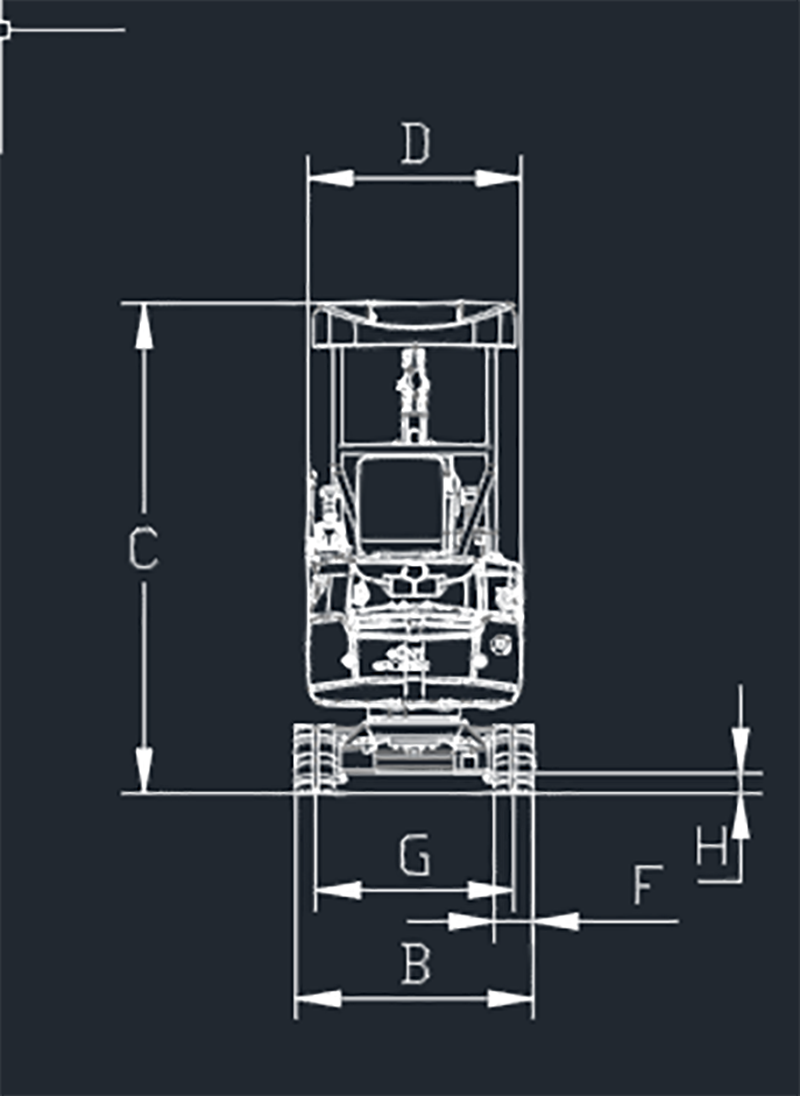

Overal size
(Overal legnth)A 4325/1655
(Overall width)B 1100
(Upper width)D 990
(Overall height)C 2272
(Standard track shoe width)F 180
(Track Gauge)G 920
(Min.ground clearance)H 119
(Tail turning radius)I 790
(Track ground length)J 1050
(Track length)K 1545
performance parameter
(Working weight)(KG) 1500KG
(Bucket capacity)M^3 0.02
(Power) 10.2KW/2500RPM
(swing speed) 12RMP
(Gradeability) 30degrees

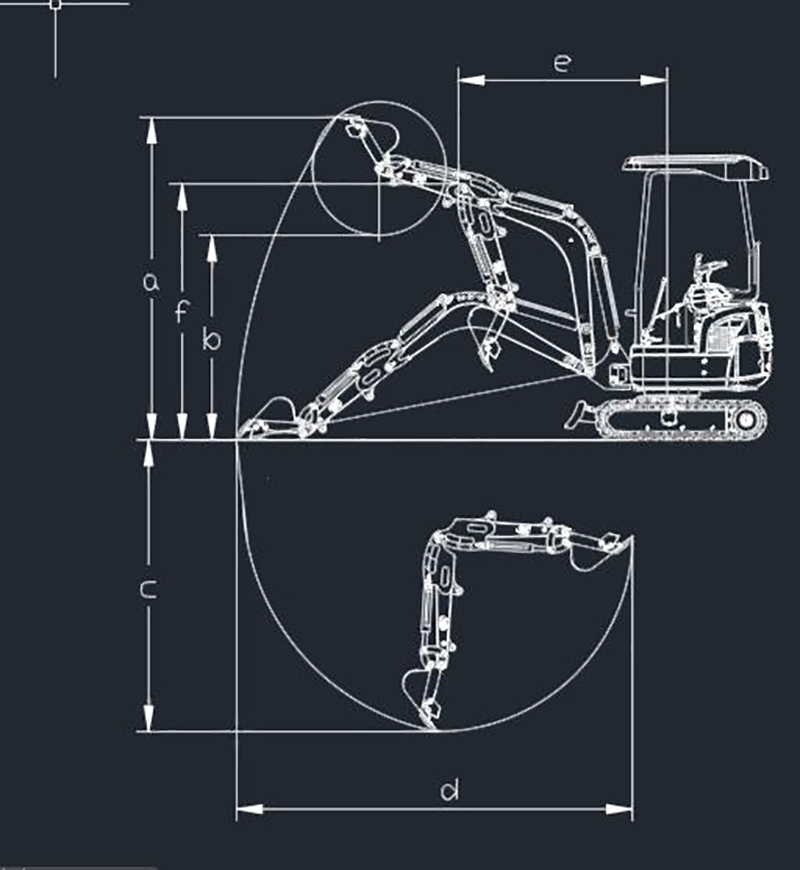

Working Range
(Max digging height)a 2580
(Max.unloading height)b 1637
(Max. digging depth)c 2060
(Max. digging distance)d 3160
(Min.turning radius) e 1711
(Max. height at minimum turning radius)f 2048
Boom swing Angle(left)° 75
Boom swing Angle(right)° 45
Main parts
Engine Kubota D722; KOOP 292
Main vavel Beifang
