PC10 Mini Excavator

Project Information

Project Description

PC10 Mini Excavator Configure

The hydraulic oil tank volume is 21L,which is 6 liters larger than other manu-facturers' excavator hydraulic oil tanks, which extends the continuous working hours in hot weather.

The dozer blade is retractable which can fully extend to 900mm width ,(other factories dozer blade is fixed at 700mm ),the machine body is more stable when working, especially working in the side direction, it is not easy to roll over.

It is a compact excavator, only 82 cm width which can easily fit through most doorways, permitting access inside of buildings.

The structural parts of the machine are processed by Komatsu sup-porting manufacturers, and the whole vehicle is shot blasted, pickled, phosphated, and sprayed, which increases the adhesion of the paint molecules, and is more durable,non-bleaching and smoother. Other manu-facturers do not have these procedures, only simply polish and spray paint, which is easy to get rusty.

For additional protection, a foldable rollover protective structure is standard-equipped on the PC10 which ensure the safety of operators.

The hydraulic pipes all imported from Continental AG Germany Company. Other hydraulic parts and the crawlers ,we cooperate with well-known domestic manufacturers.

With tie rods and screws on the track, the shaft will never bend due to large forces.

Use domestic well-known brand Changchai 192F engine, strong power and stable working,or popular Koop Engine to meet Europe emission demand.

PC10 Mini Excavator Parameter

Performance Parameter

Rated power

12HP

Bucket capacity

0.025 m2

Engine model

KOOP 192

Optional engine

Briggs &Statton

Operating Weight

780 kg

Max. digging force

7 5KN

Pump form

Single gear pump

working pressure

14Mpa

Swing speed

12 rpm

Travel speed

2.2Km/h

Gradeability

30°

Ground pressure

19Kpa

Dimensions

Total width

880mm

Total height

1380-1980mm(Folding safety frame)

Total length

2600mm

Min. ground clearance

100mm

Track ground length

1140mm

Track width

150mm

Working Range

Max. digging distance

2750mm

Max. digging depth

1450mm

Max diging height

2600mm

Max. dumping height

1760mm

Min Swing radius

1100mm

Max. ground clearance of bulldozer

120mm

Max. support depth of bulldozer

200mm

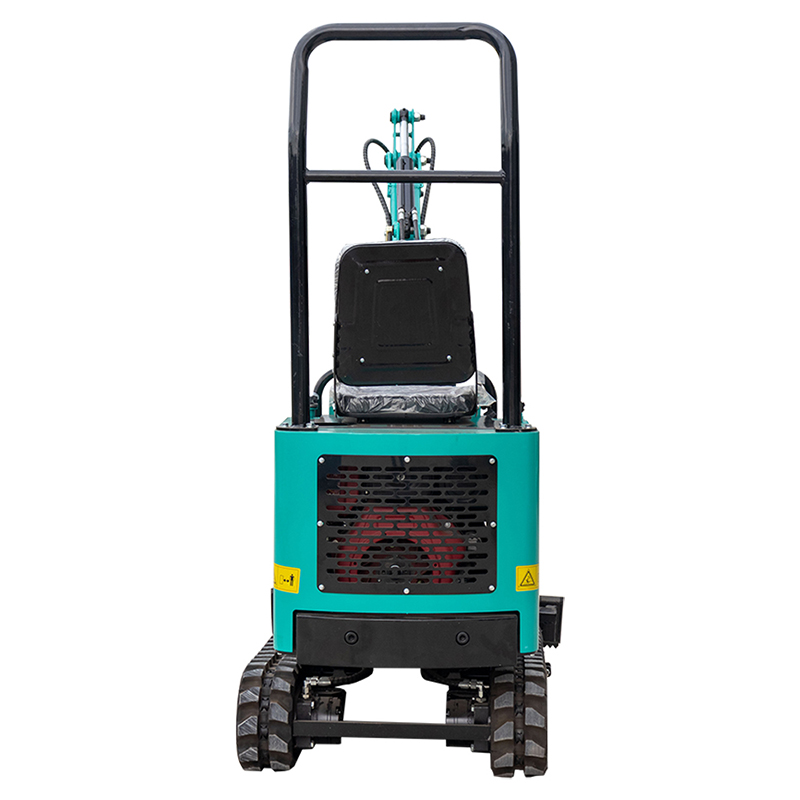

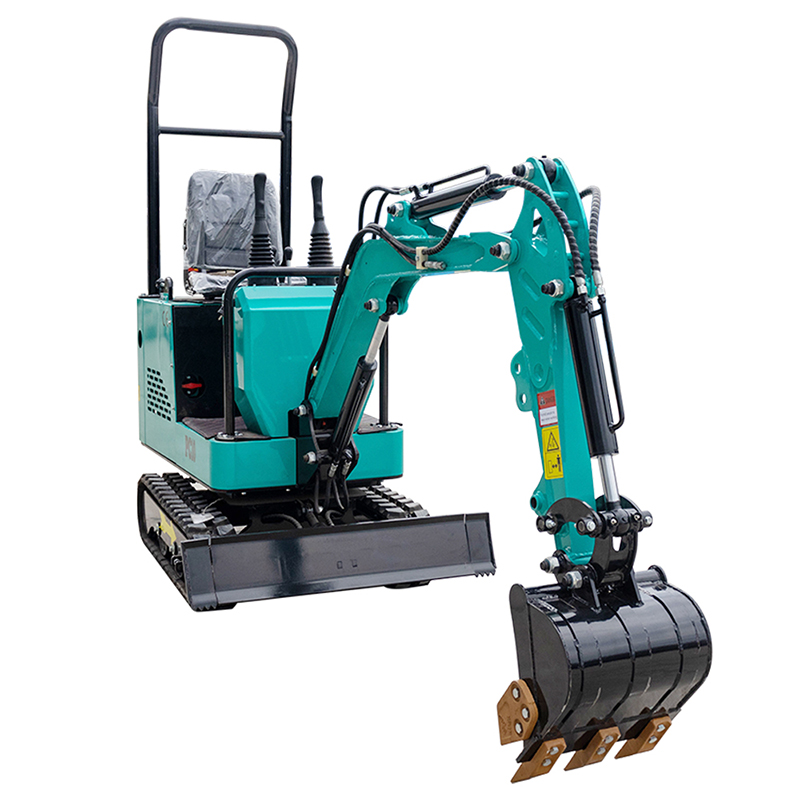

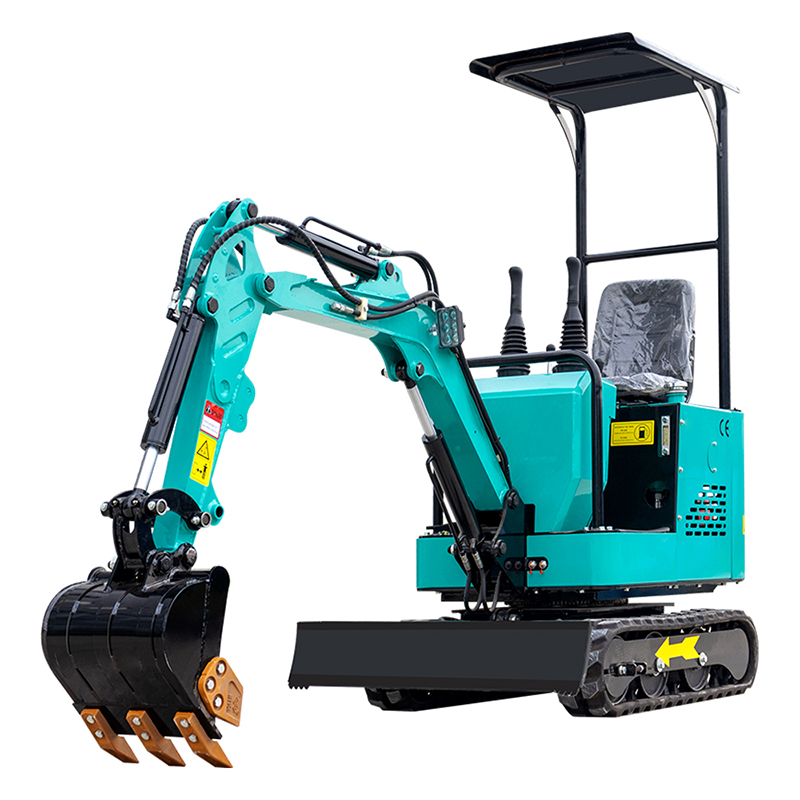

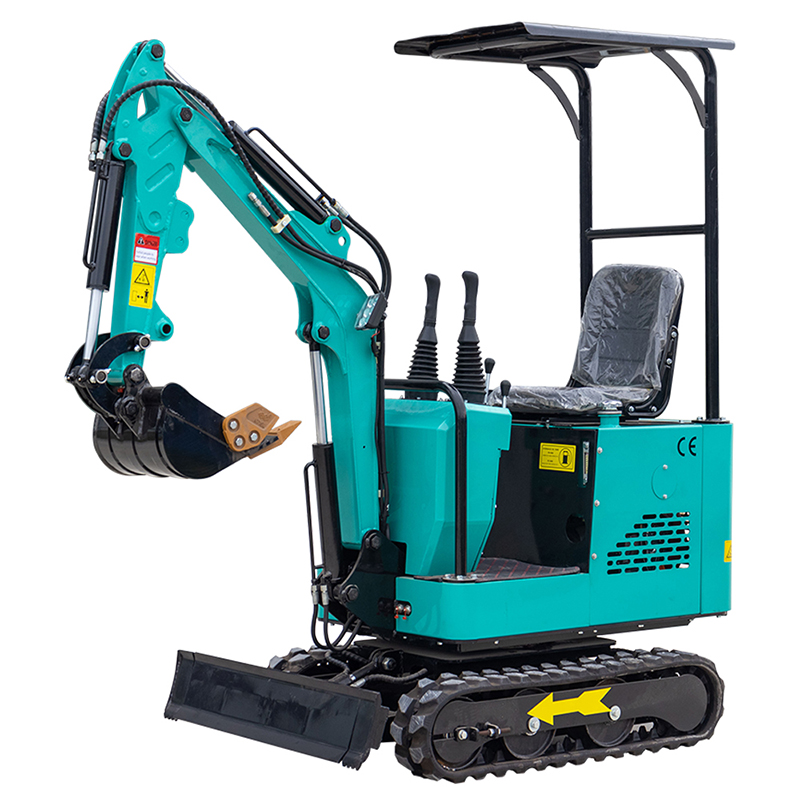

PC10 Mini Excavator Image
